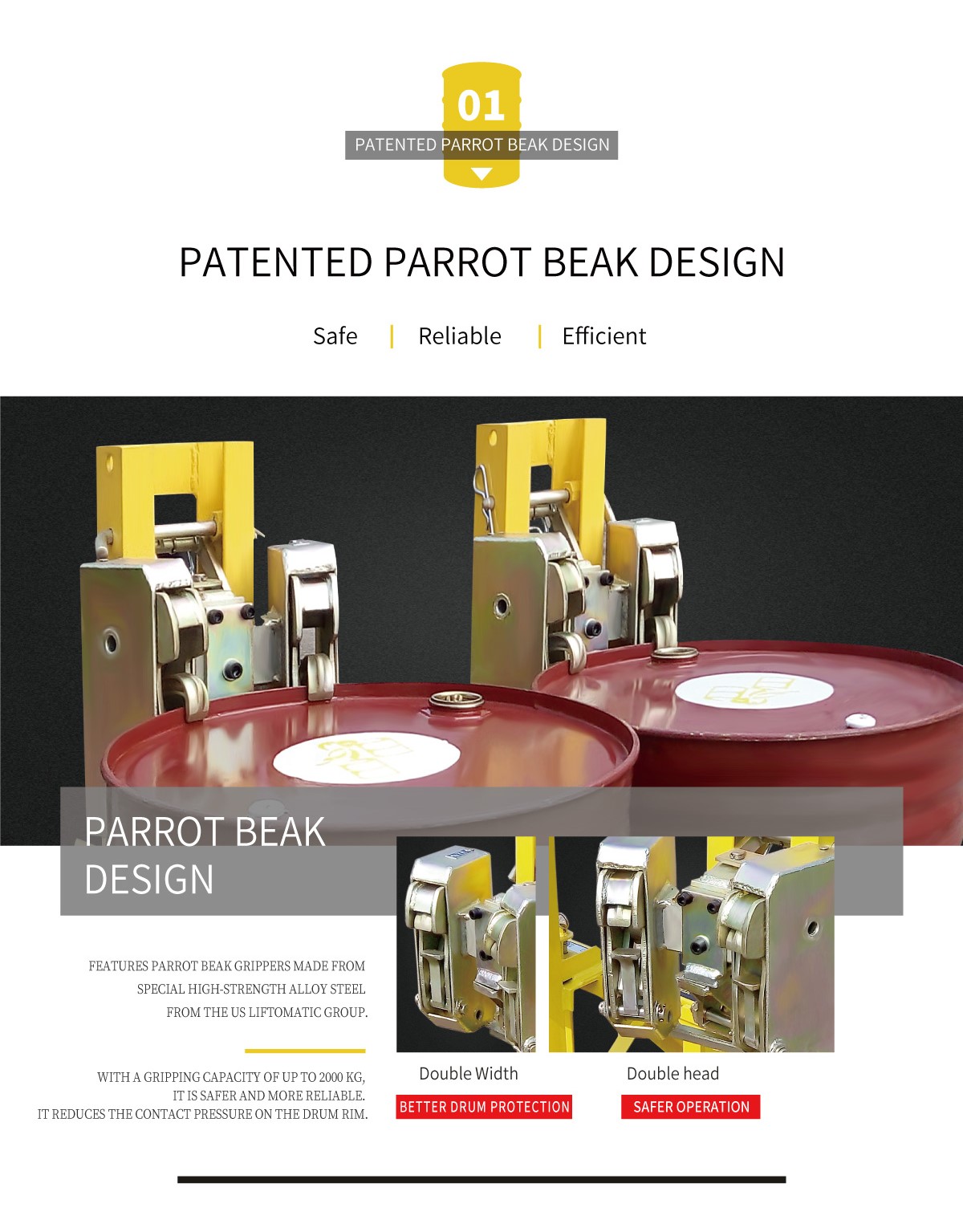

1、Double-width dual parrot-beak jaws, double-width protective belts, and a gripping capacity of up to 2000 kg.

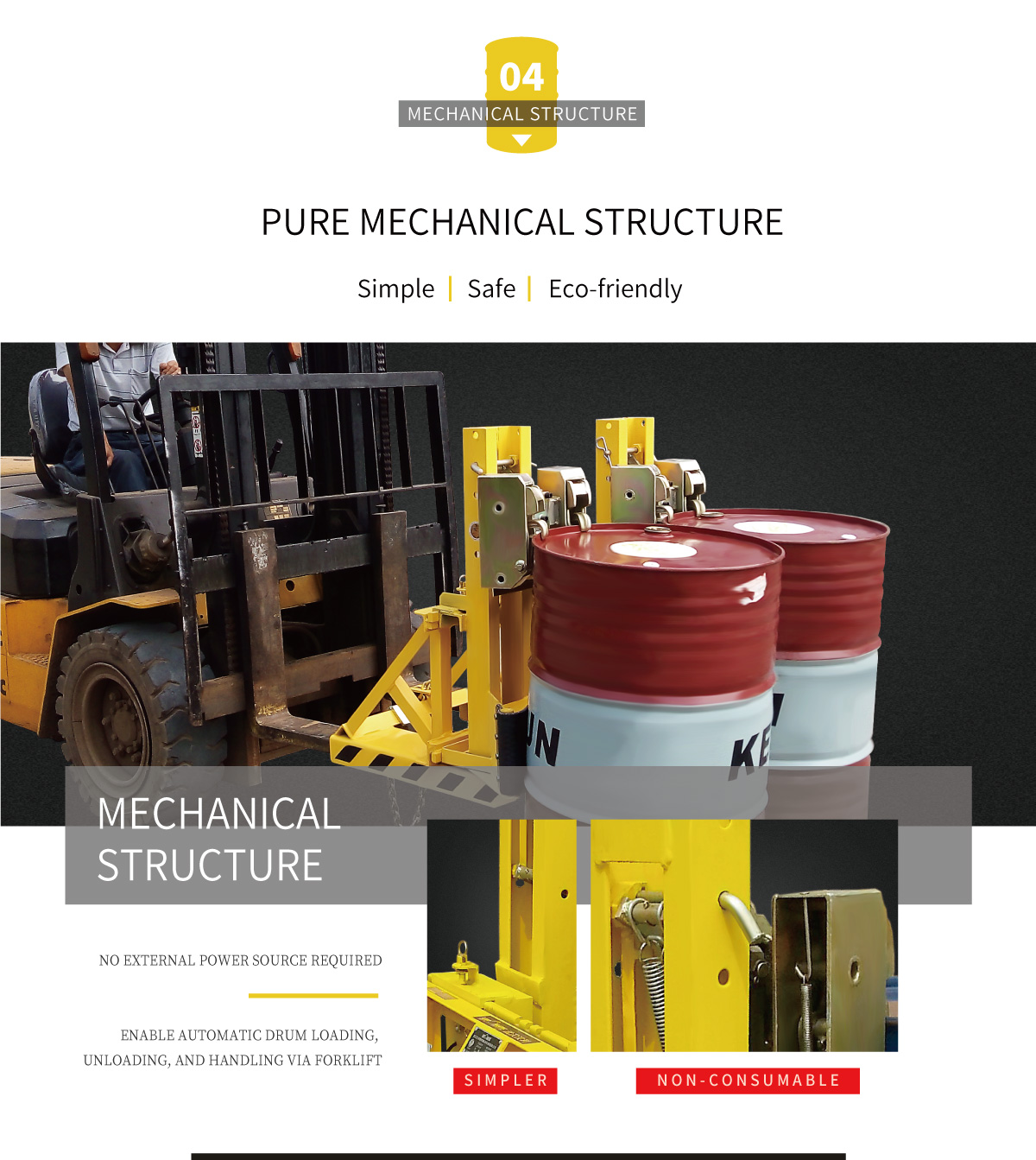

2、The heavy-duty double drum handler features a purely mechanical design that integrates simply and conveniently with forklifts. Relying solely on the forklift's movement without the need for additional power, it can automatically handle 1-2 drums at one time.

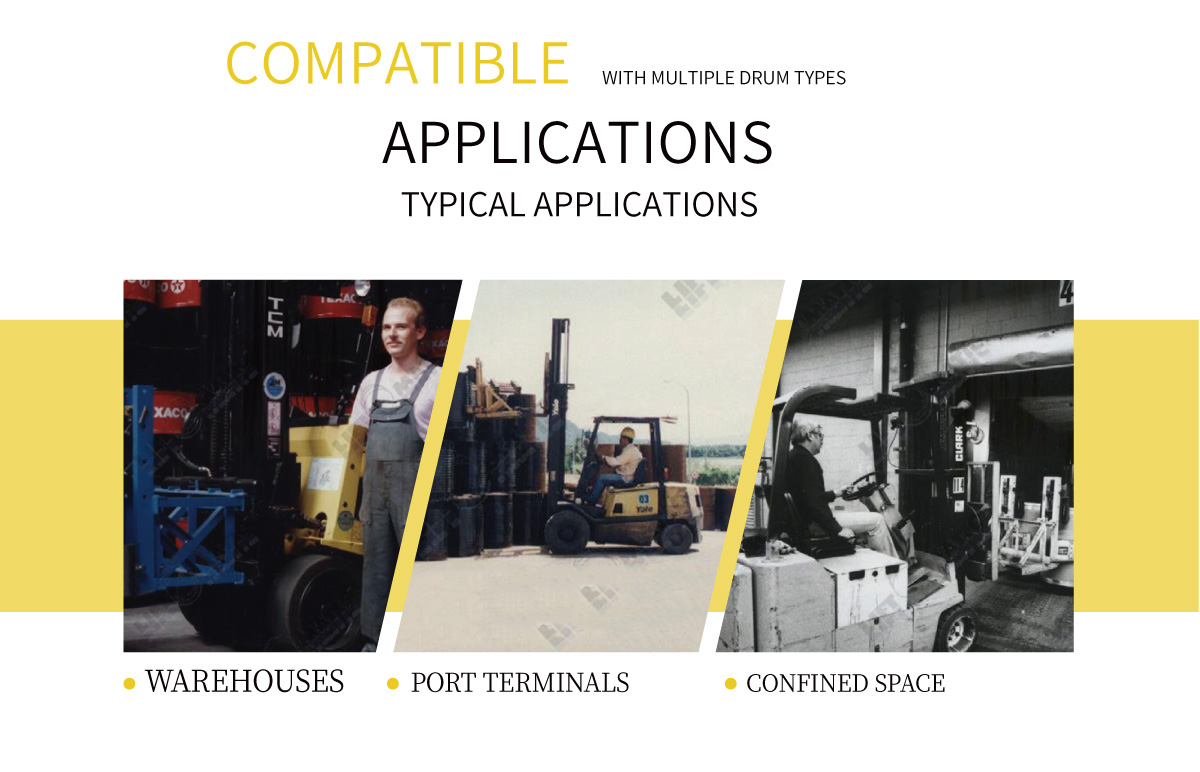

3、Capable of handling a wider variety of drum types, including steel, plastic, fiber, and open-head drums with tight rims. It enables loading and unloading of drummed materials in confined spaces such as shipping containers, significantly maximizing space utilization.

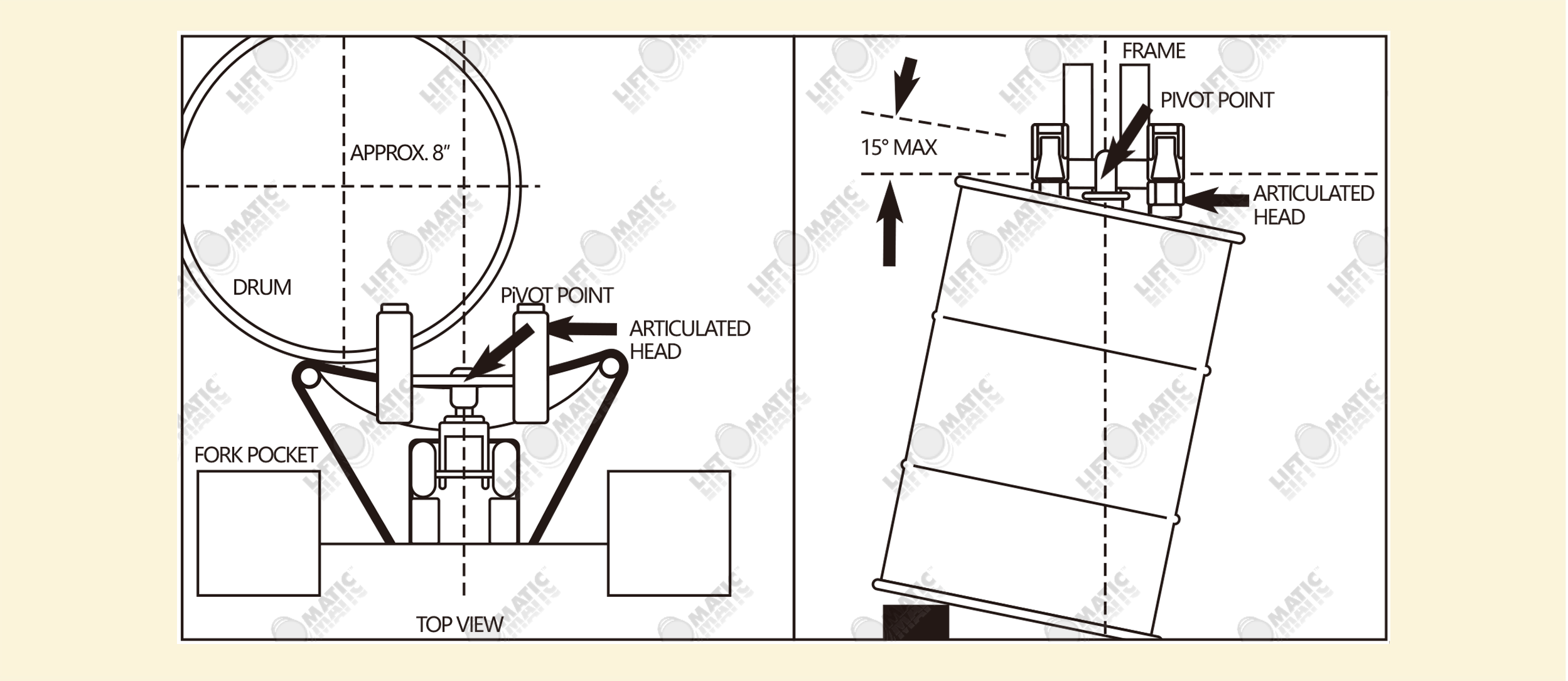

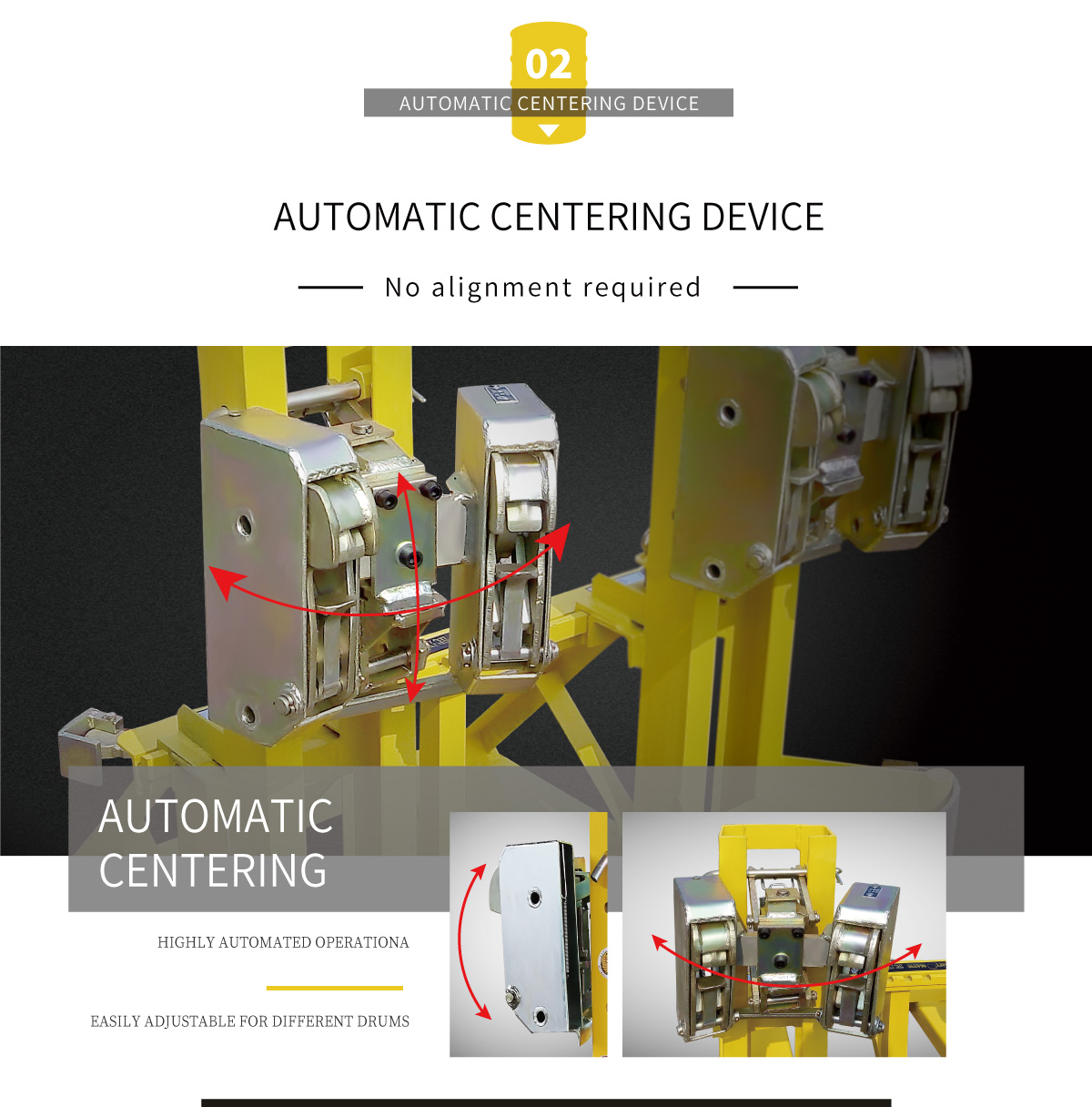

4、Fully automatic mechanical operation; the frame can be adjusted up, down, left, and right to accommodate drums of different specifications. Each drum is secured by an automatically centering dual "parrot-beak" clamp mechanism, which not only further reduces stress on the drum rim but also ensures reliable transport and stacking even for partially damaged or unevenly placed drums.

5、Capable of handling open-head and closed-head drums of various sizes.

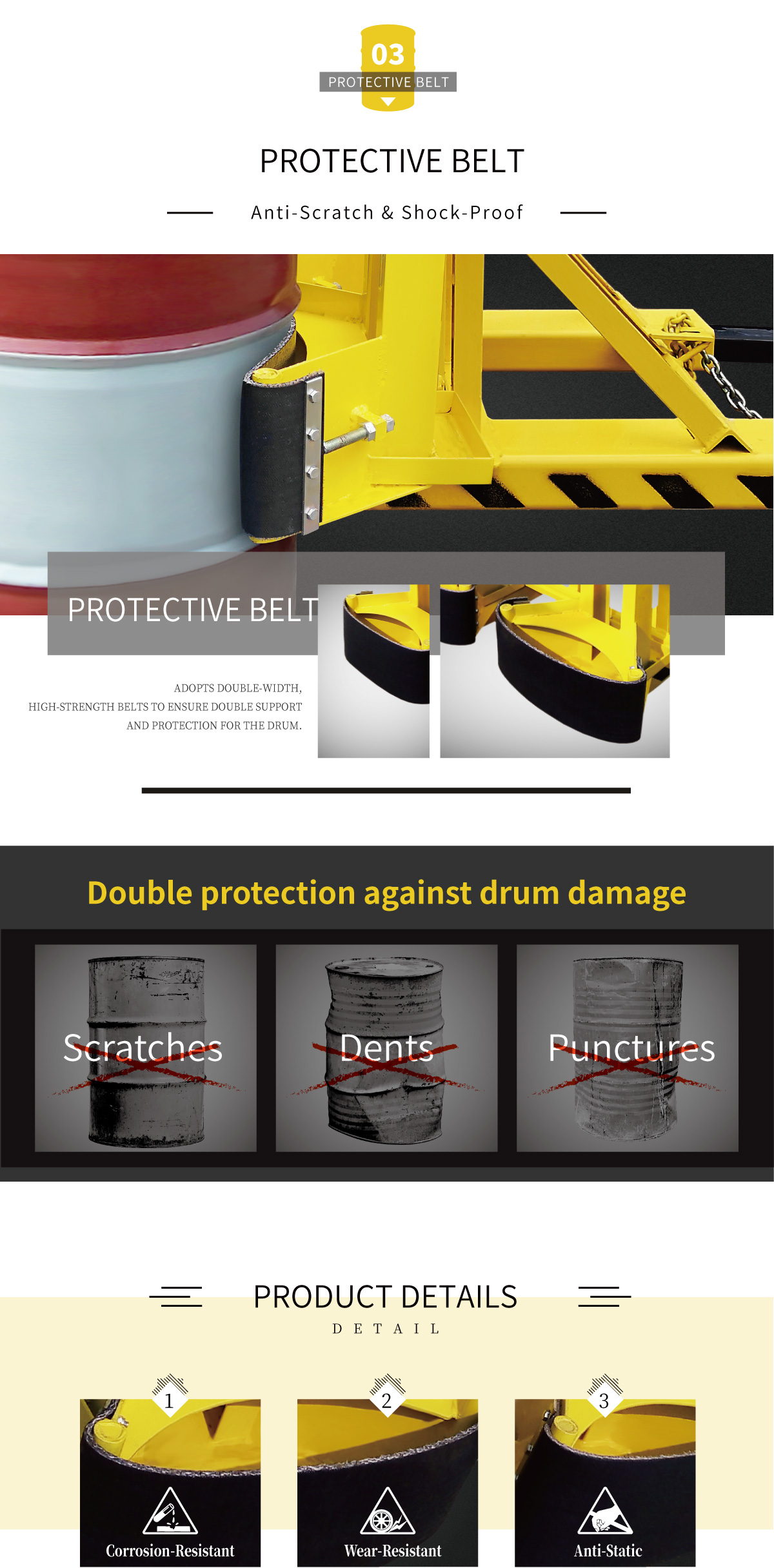

6、The protective belts on the frame provide excellent support and protection for the drum, preventing any scratches, dents, or punctures to the drum sidewall.

7、The connection to the forklift tines can be selected as either a safety chain connection (standard) or a Quick-Claw automatic locking control device (recommended).

8、Recommended for applications handling more than 1000 drums per month.

Optional Accessories

 Original imported spark-resistant jaws from the USA: Suitable for "EE" rated or low flash point applications!

 "CM" carriage-mounted handler: Can be directly installed onto the forklift carriage!

 Quick-Claw® automatic safety restraint system: Allows for rapid installation and separation of the drum handler from the forklift without the driver leaving the seat, ensuring cargo safety!

 Stainless steel jaws: Ideal for pharmaceutical, food, and other enterprises with anti-rust and safety requirements, as well as highly corrosive chemical industries. The stainless steel jaws offer superior rigidity, toughness, and durability

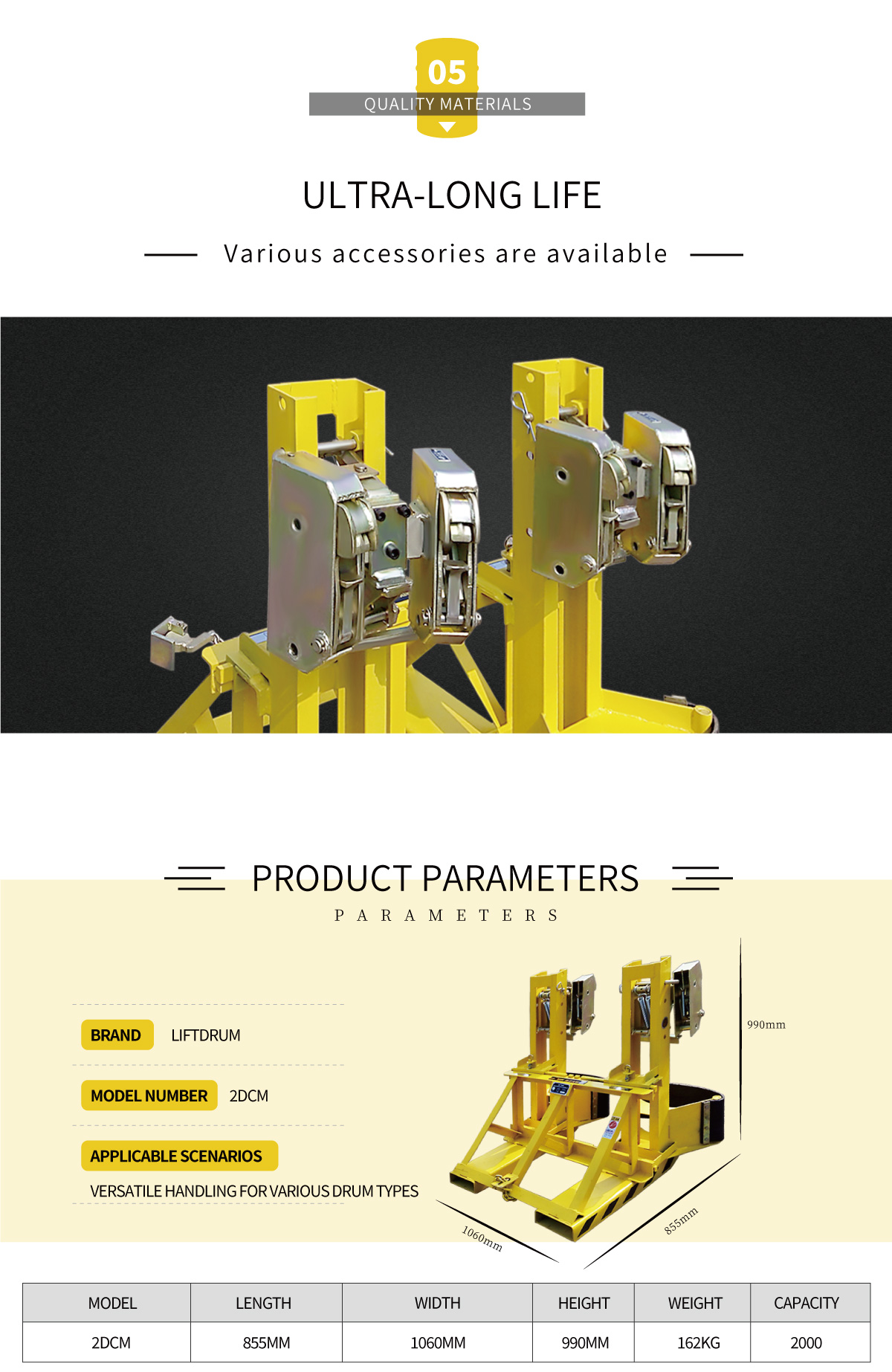

Specifications
