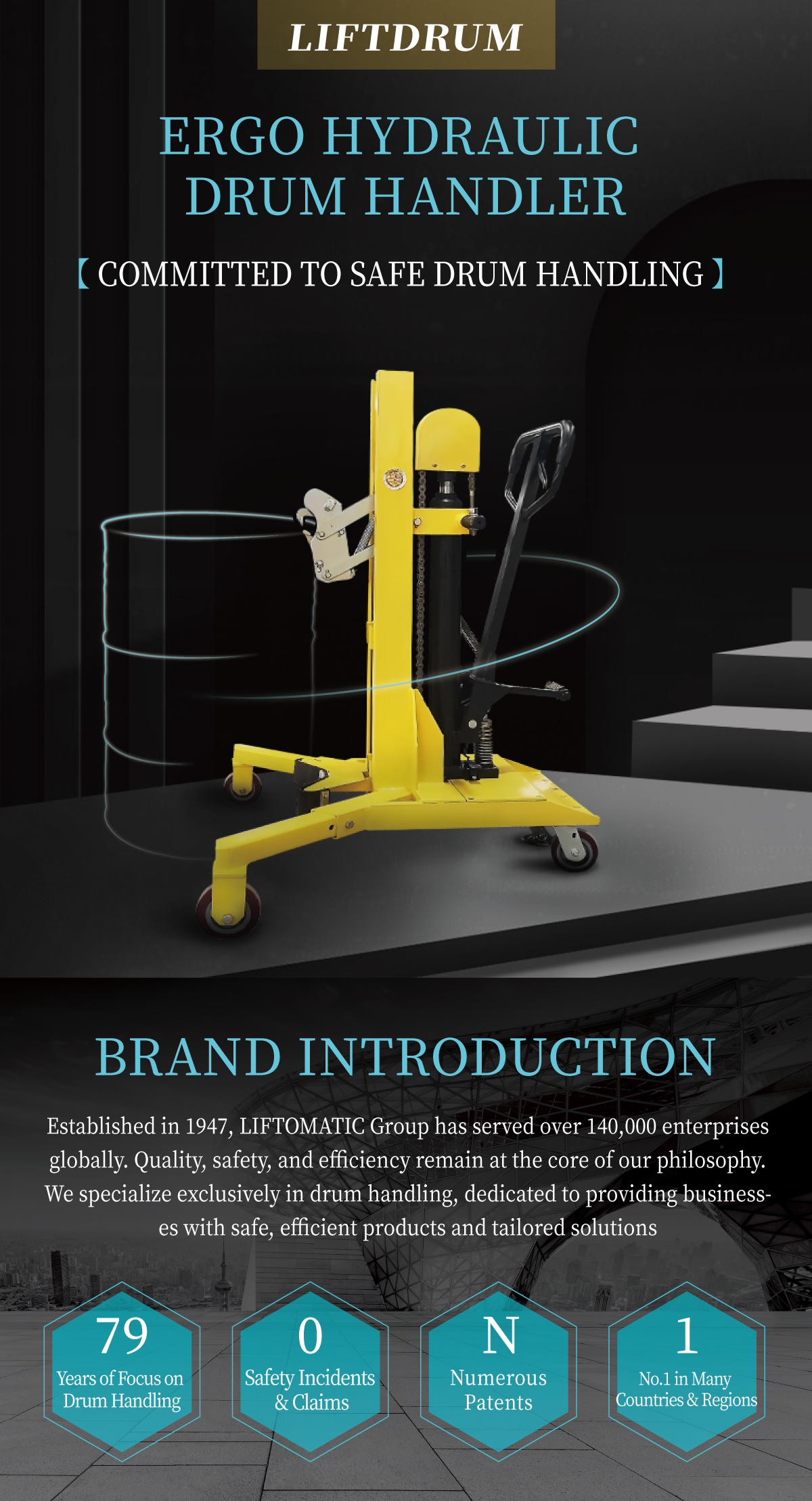

Ergomatic Standard Portable Drum Handling Equipment
Product features

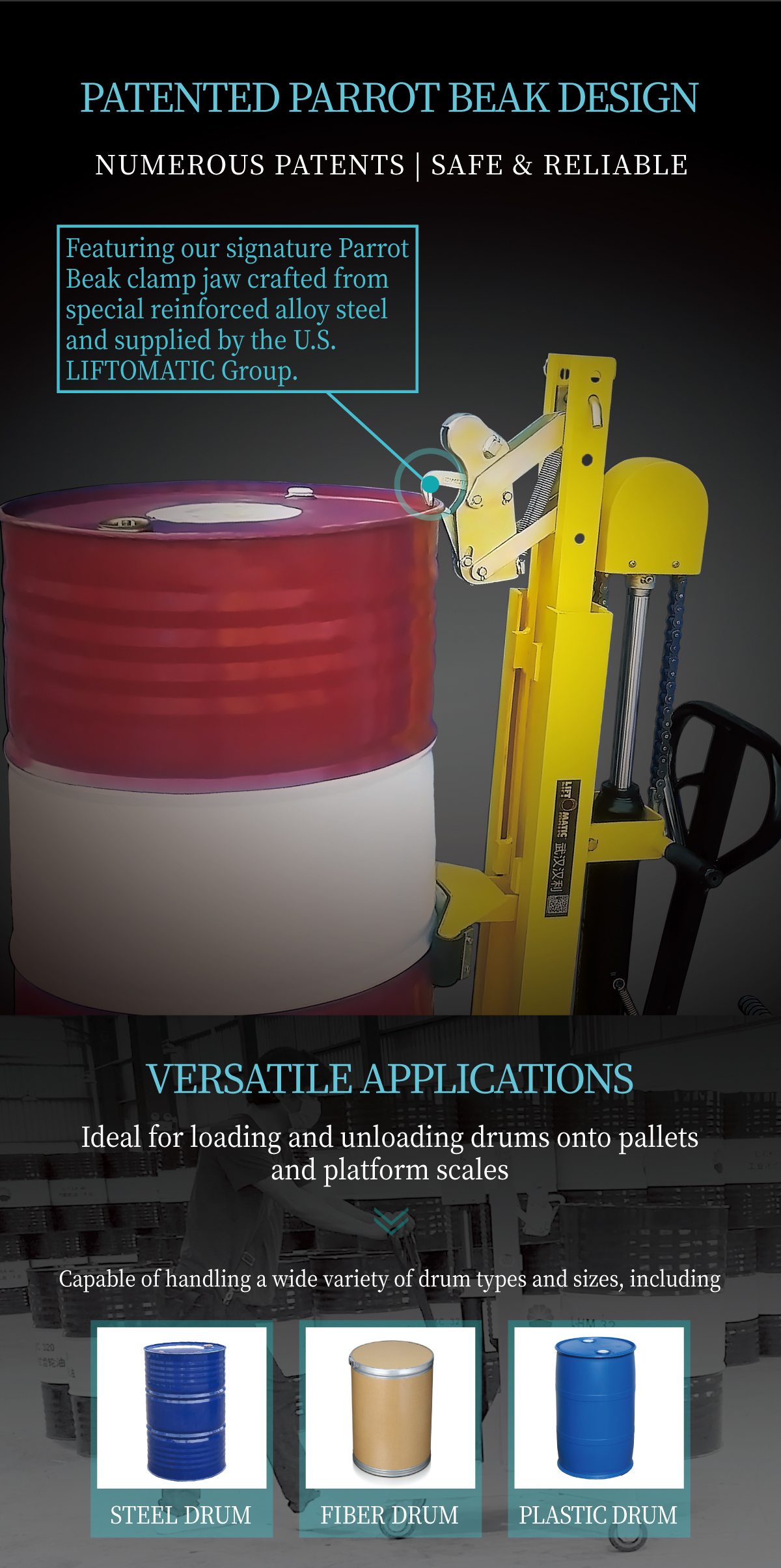

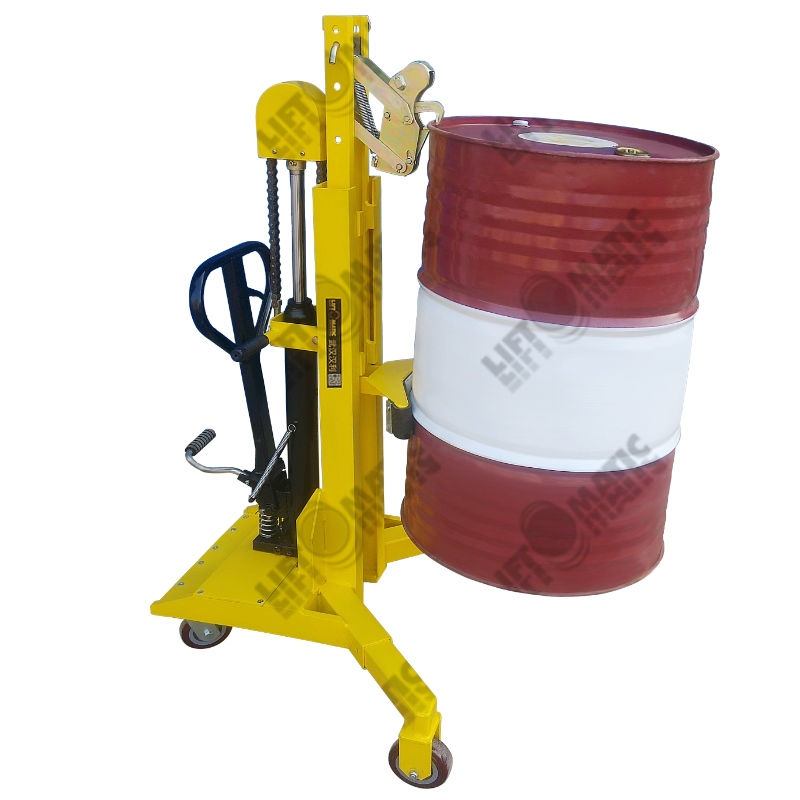

This safe and effective portable drum handler is ideal for moving drums to and from pallets, skids, scales and spill or containment pallets. The clamping mechanism grabs any steel, fiber or plastic drum automatically in lift operation. Its unique V shaped straddle leg configuration with telescopic adjustment settings for 270kg, 360kg and 450kg capacity. Cushioned belt-cradle protects drum sidewall during lift, lower and transport function. Ergonomically efficient design with foot pedal lift/lower feature and adjustable lowering speed control. Standard lift height of 41cm, with 96cm lift available as option. 2cm rise per stroke of foot pedal.

Product Overview

Widely used for loading and unloading steel, fiber, or plastic drums from pallets, platform scales, and receiving pallets.

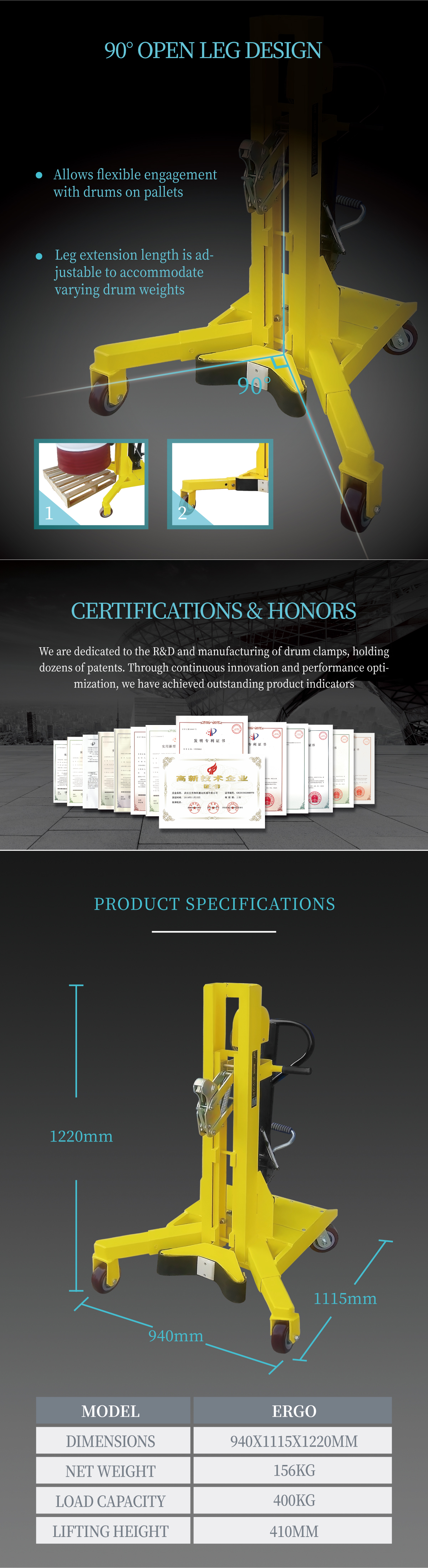

The 90-degree open-leg design allows for flexible gripping of drums on pallets and adjusts the leg extension based on the drum's weight.

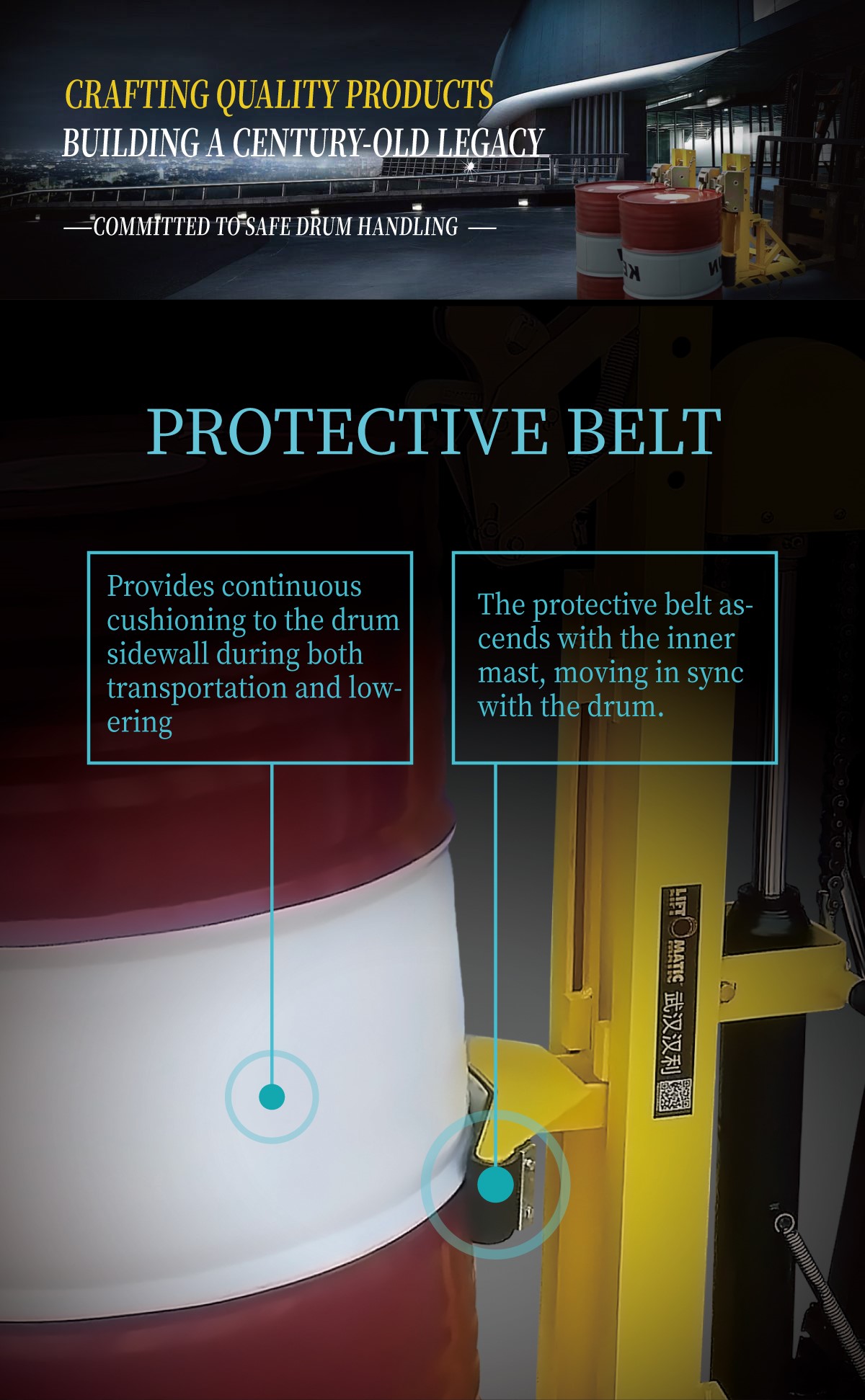

The belt on the inner mast protect the drum sidewall during lifting, lowering, and transport.

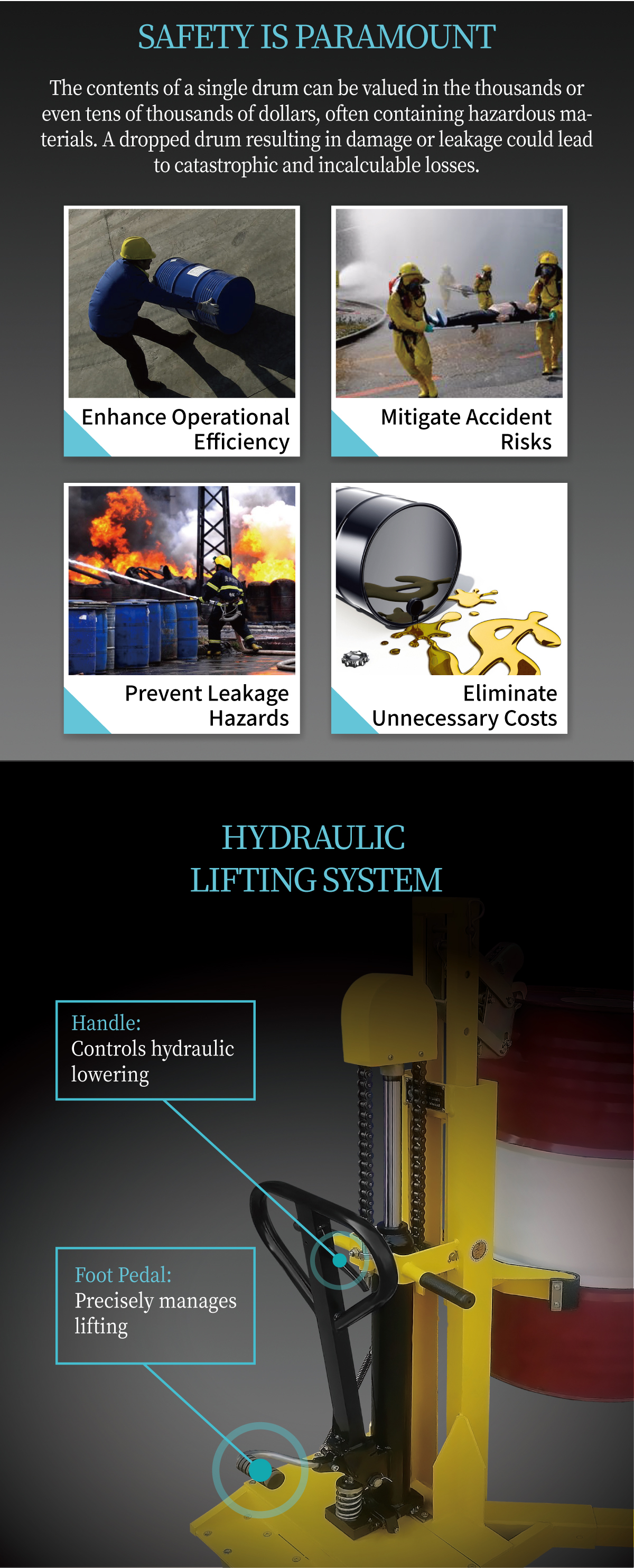

Featuring a simple design with foot-pedal controls for lift height and descent speed, enabling efficient drum stacking.



Specifications



ModelERGO
Weight164KG
Capacity450KG

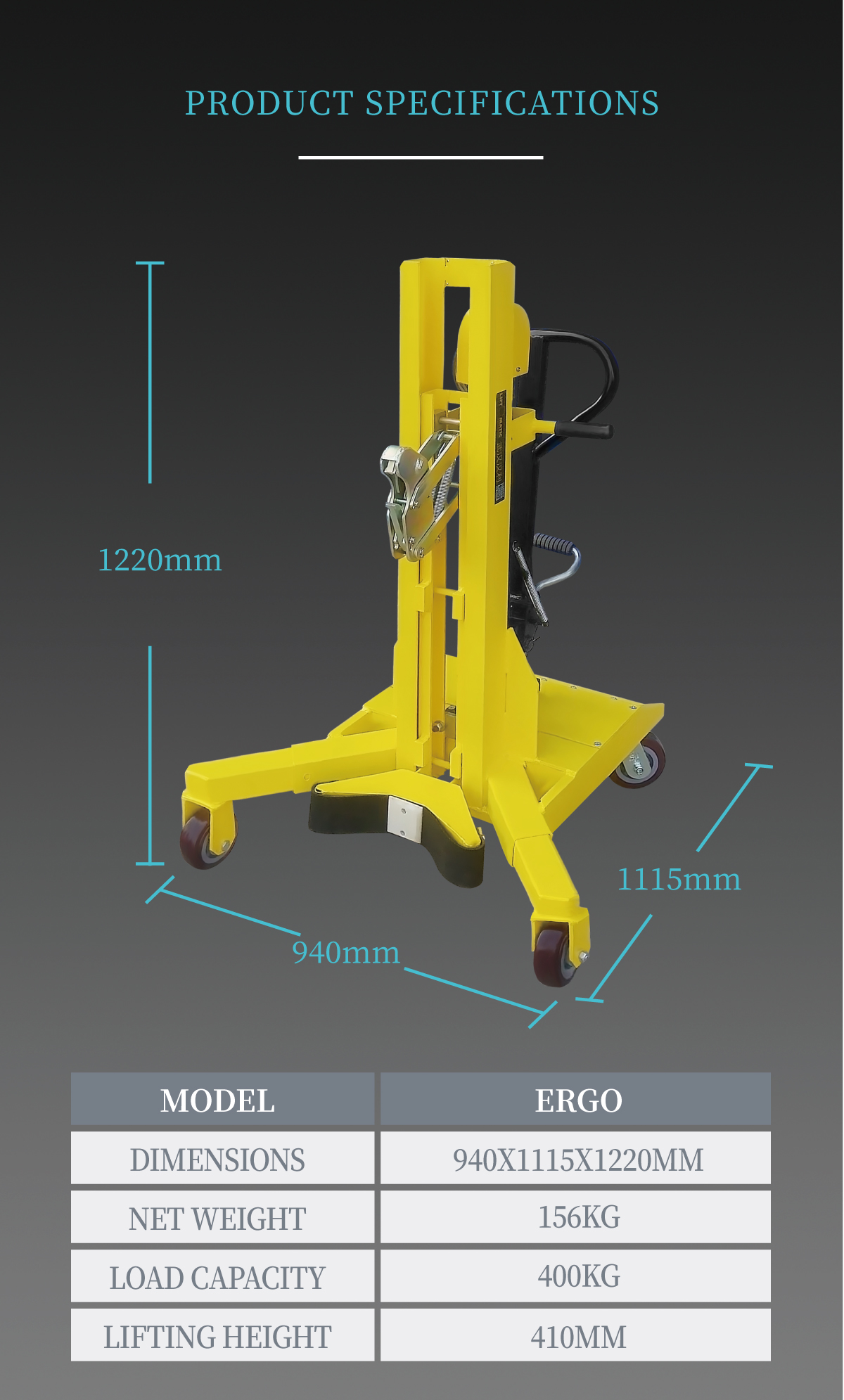

Dimensions940mm (L) x 1115mm (W) x 1220mm (H) (in 450 kg leg setting)
Lifting height410mm
Warranty12 months against any defect in parts and workmanship
Unit OptionsAnti-Static Wheels Option
Double Clamp Head Mechanism Option
Drag Strap Option
Spark-Resistance Option
Custom size & Permanent weld models for tight rack or aisle work
Optional wheels for various floor conditions. Custom designs for non-standard drums or applications
