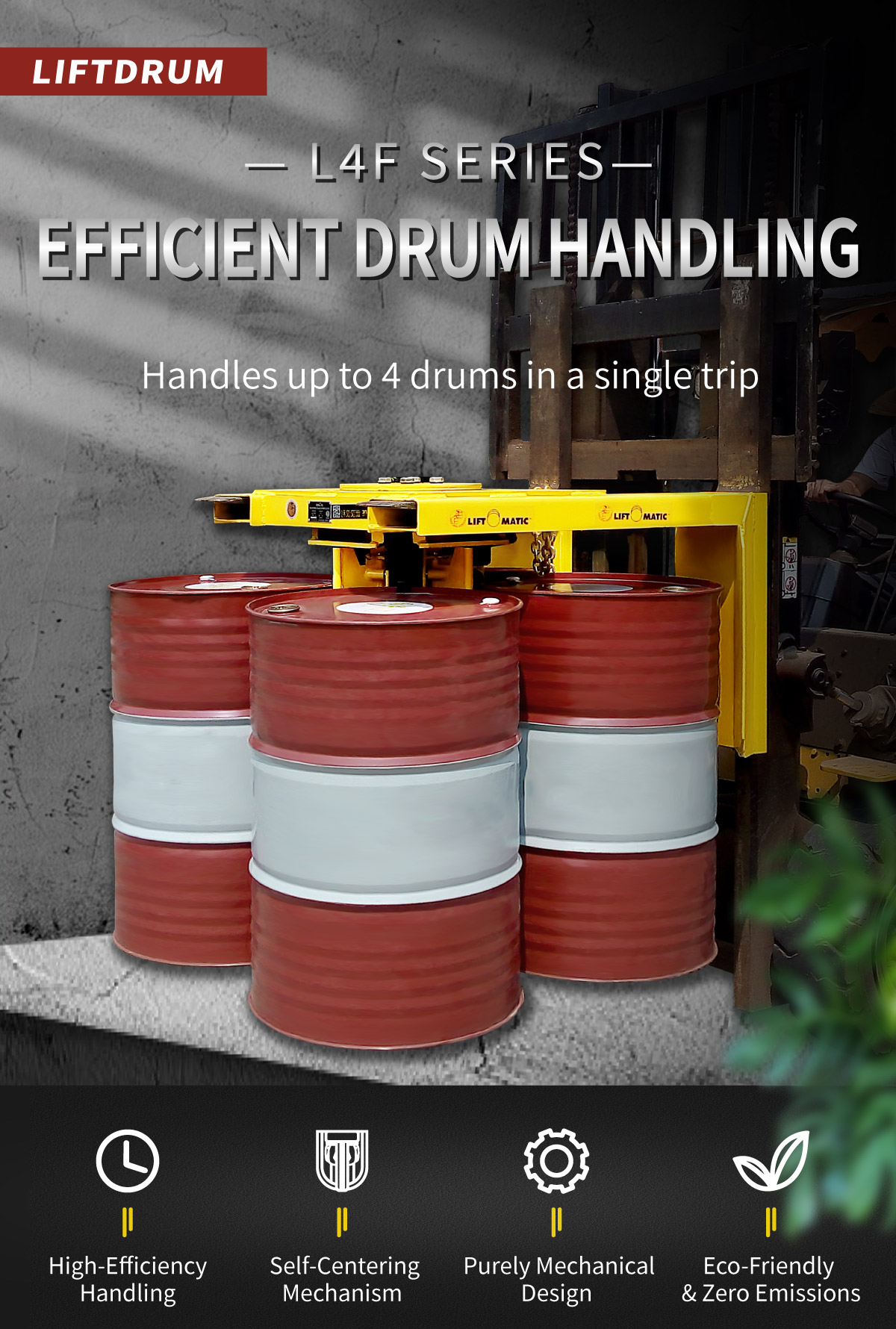

L4F, Fork Mounted LOM-4 Drum Handler, Long Frame
Product features

Fork mounted automatic and mechanical forklift attachment for handling 1,2,3 or 4 drums at one time. Unit handles all conventional rimmed steel, fiber and plastic drums. Ideal for conveyor work, pallet change-out, truck and container loading, general warehousing and all stacking and high-volume drum handling applications. Ideal for high-traffic drum handling operations. Secures to forklifts with safety chain and gravity clamp device.

Product Features

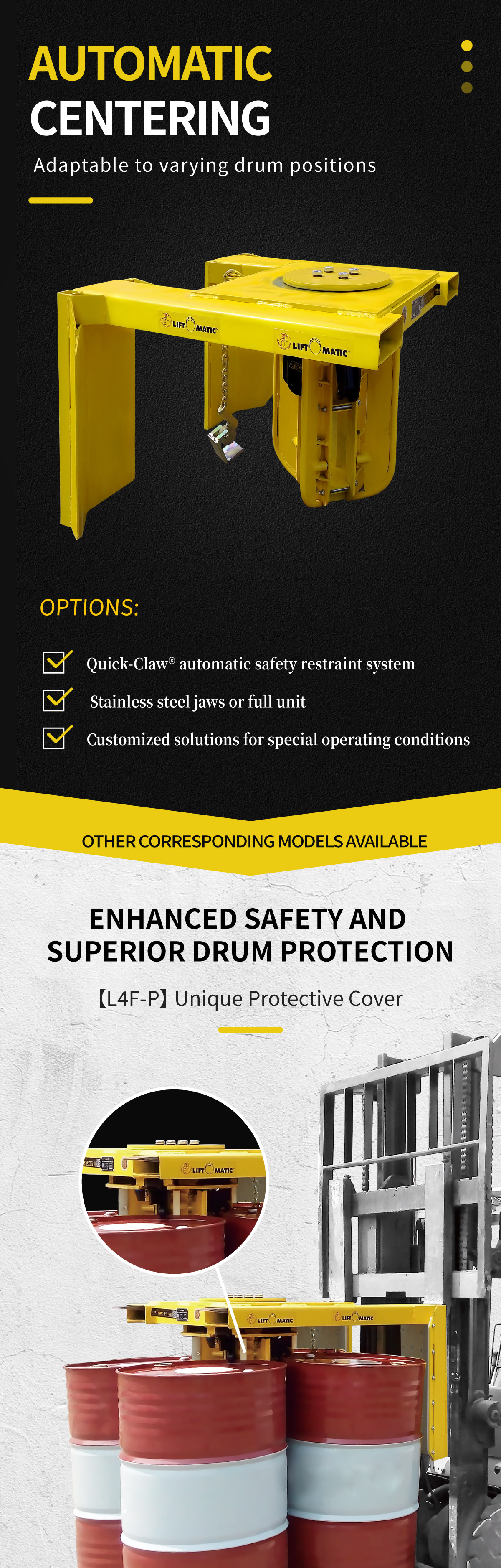

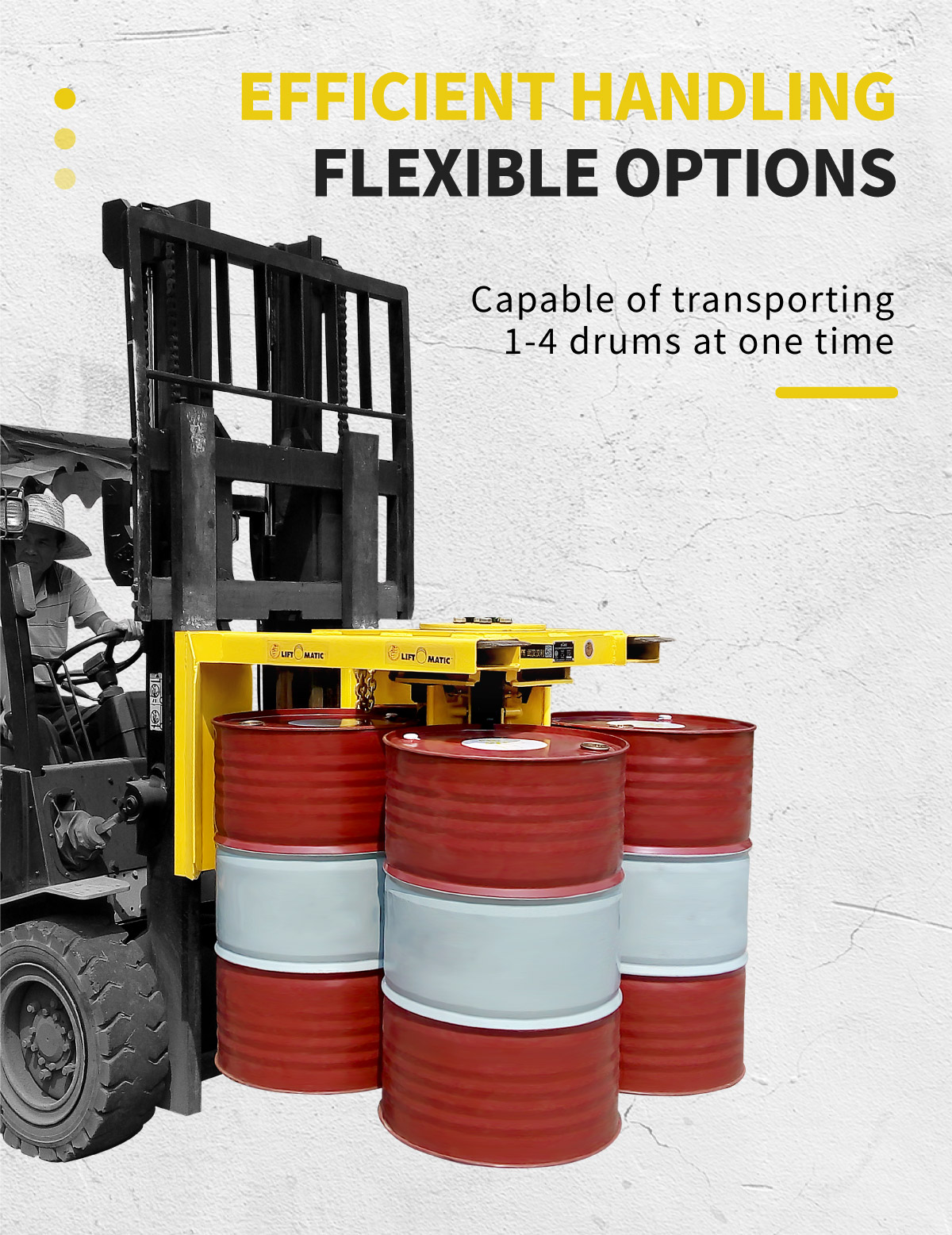

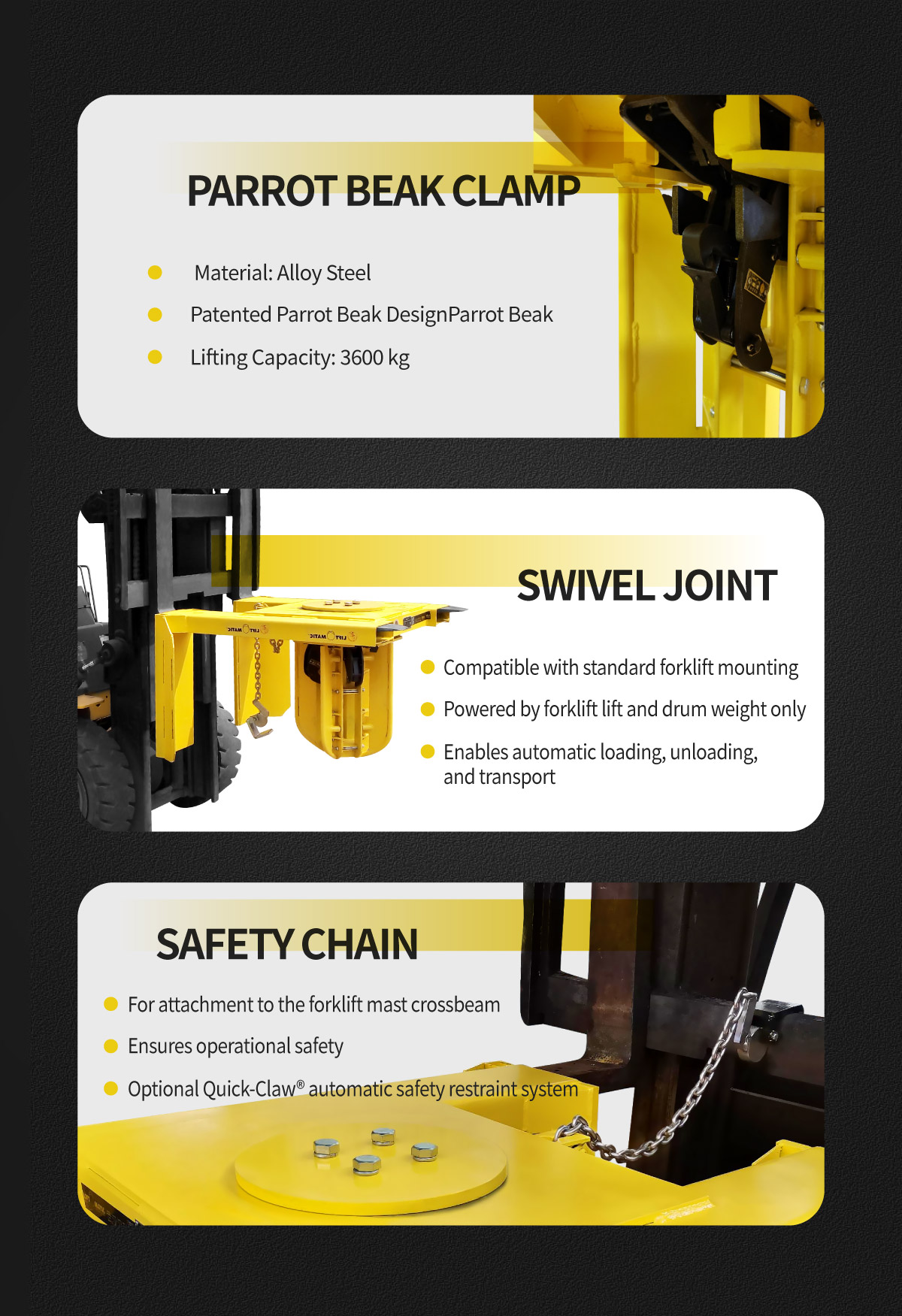

1.High-volume forklift attachment capable of handling up to 4 drums at one time(8-drum models available as an option). Utilizing LIFTOMATIC's exclusive "parrot-beak" clamping mechanism, the core frame automatically adjusts to accommodate drums in varying positions, allowing for the simultaneous transport of a group of 4 drums.

2.Fully automatic mechanical operation requiring no external hydraulic or electrical connections. The attachment mounts directly onto the forks of any forklift and is secured using the included safety chains.

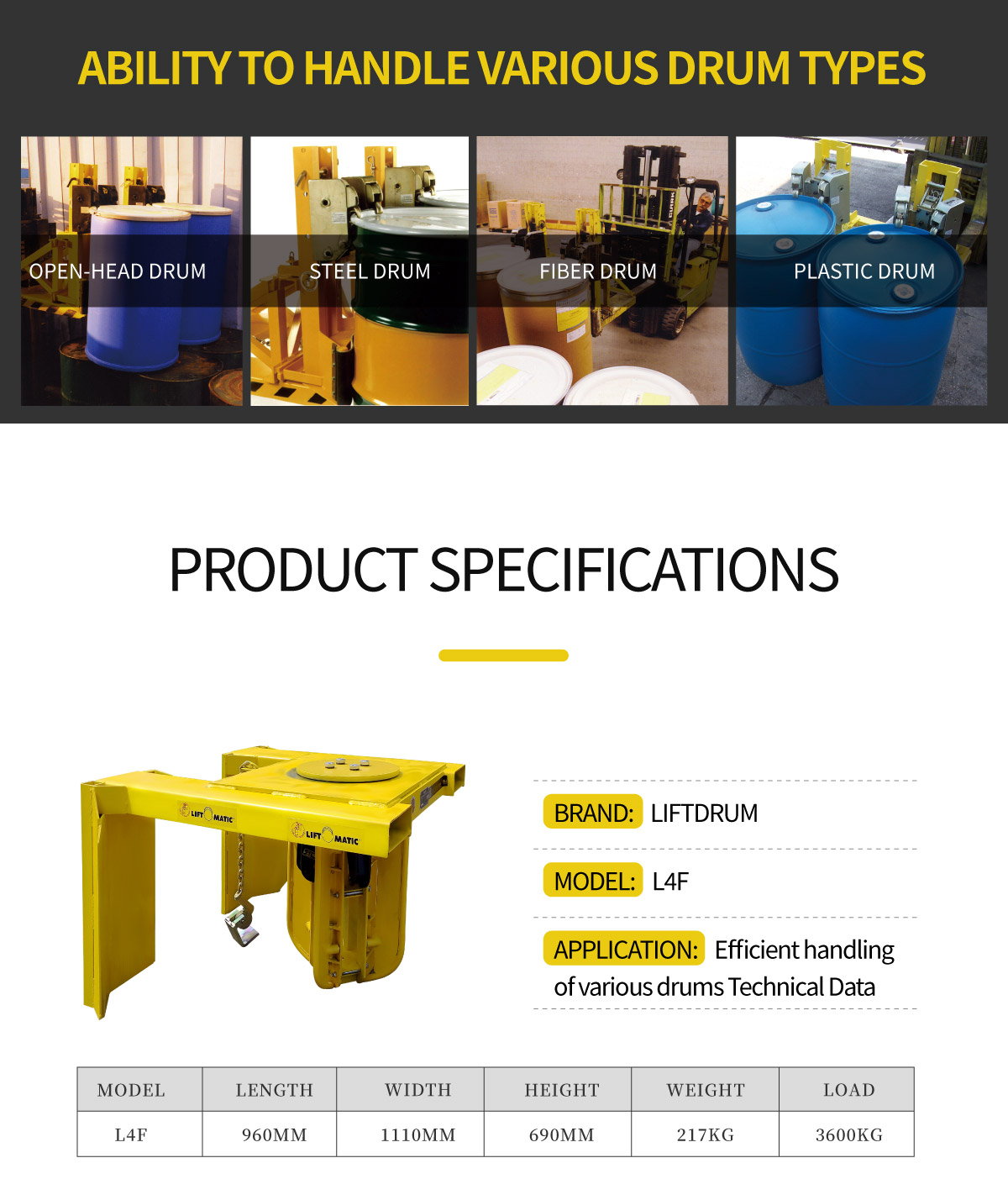

3.Compatible with steel, plastic, fiber, and tight-head drums.

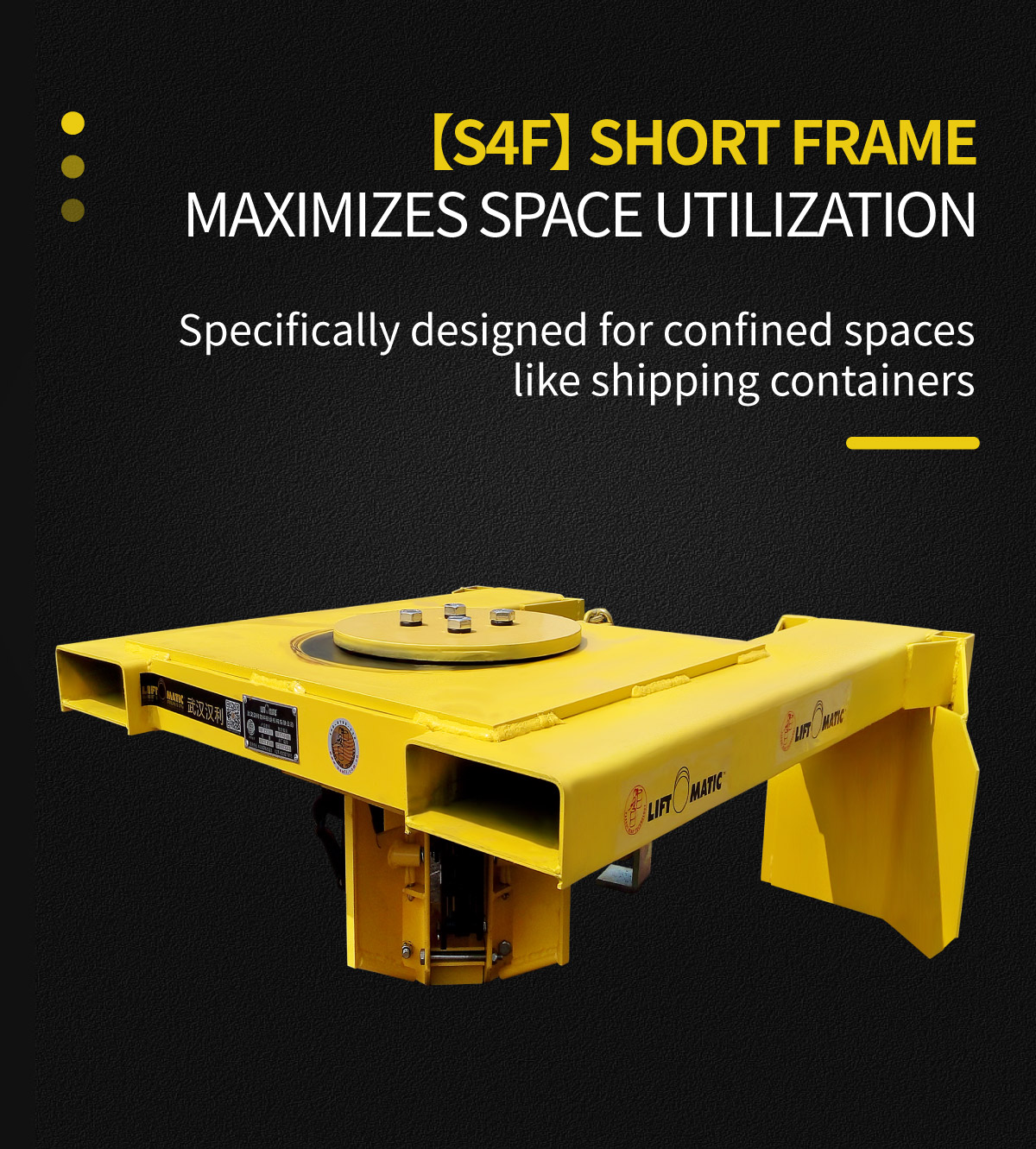

4.Available in L4F and S4F models for selection. The L4F model (long frame) can handle 1, 2, 3, or 4 drums at a time, while the S4F model (short frame) is designed specifically to handle 4 drums simultaneously. The S4F model enables loading and unloading in confined spaces such as shipping containers, where the L4F model can only handle 2 drums on the upper layer, significantly maximizing space utilization.

5.Recommended for high-volume production workshops and warehouses, ideal for moving large quantities of cargo and transporting drums over long distances. It is particularly suited for high-density storage environments, palletizing operations, and double-lane roller conveyor lines.



Specifications



ModelL4F
Weight217KG
Capacity3600KG
Dimensions965mm (L) x 1100mm (W) x685mm (H)
Distance from Load Center655mm
Warranty12 months against any defect in parts and workmanship
OptionsSpecial Claw for food grade applications
Spark-Resistant and EX packages
Quick-Claw® automatic safety restraint system
"CM" models allow units to fit directly on forklift carriage (fork free)
