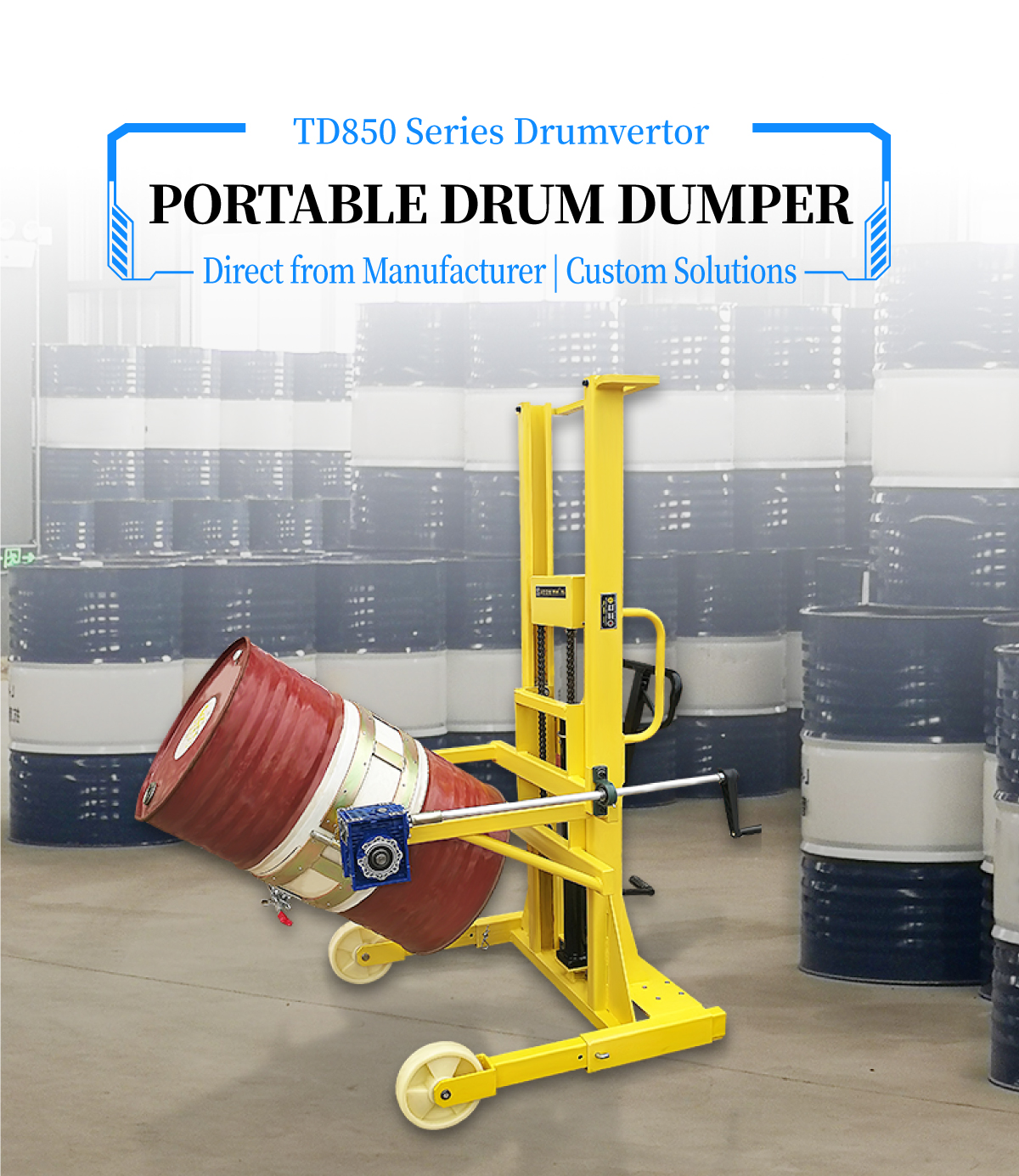

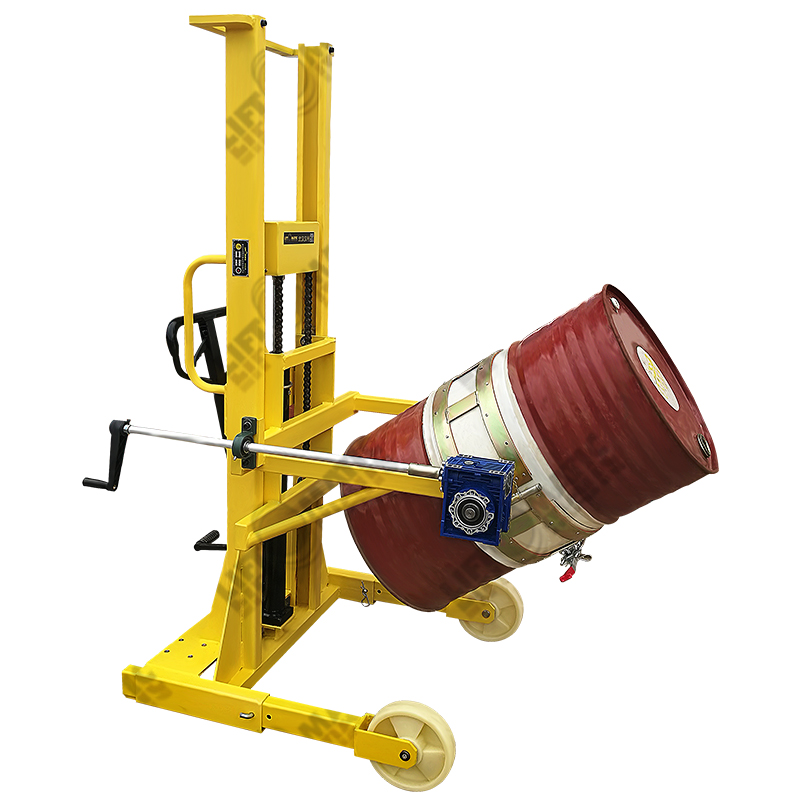

TD-850 Drumvertor, Portable Drum Dumper
Product features

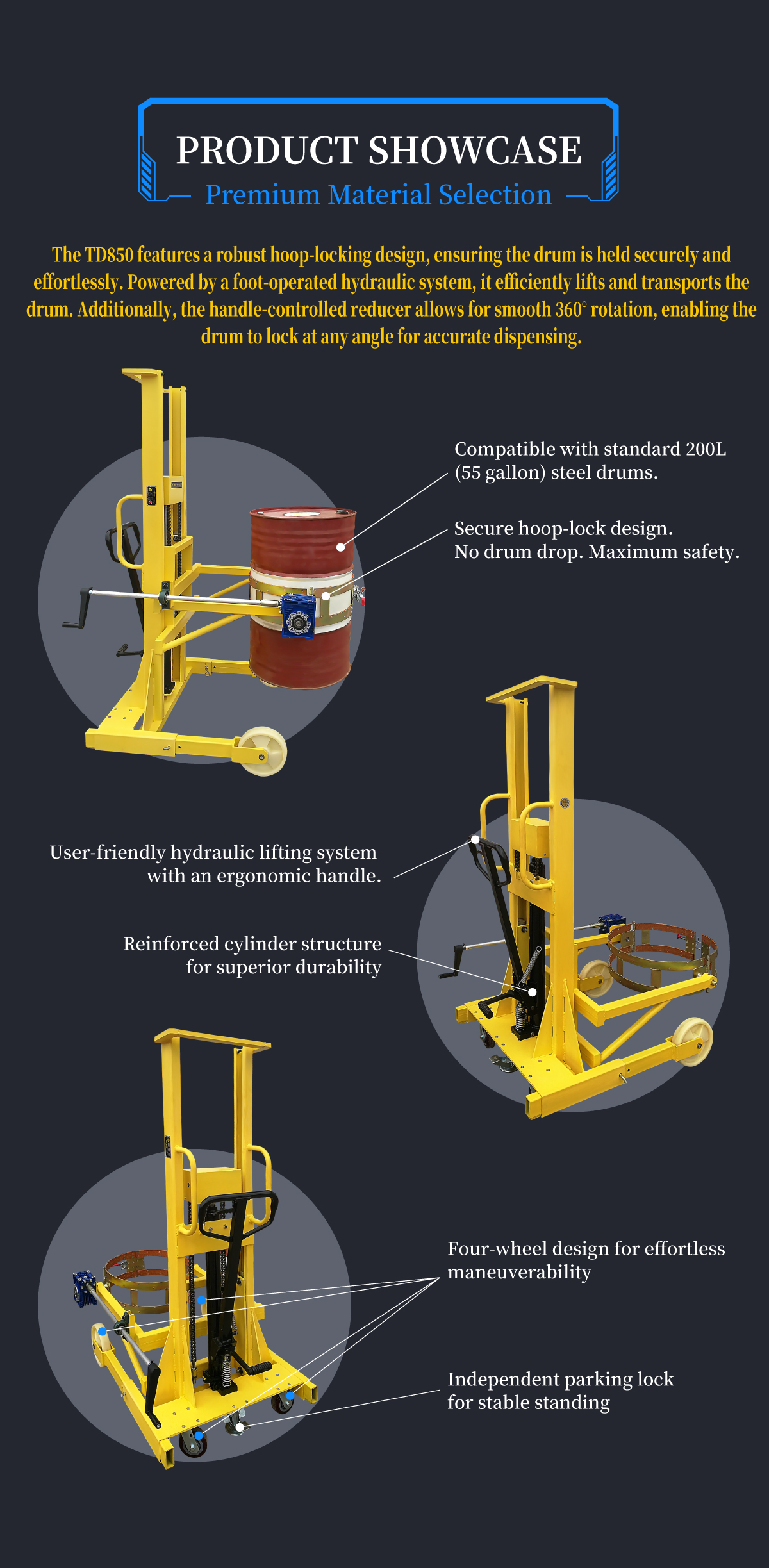

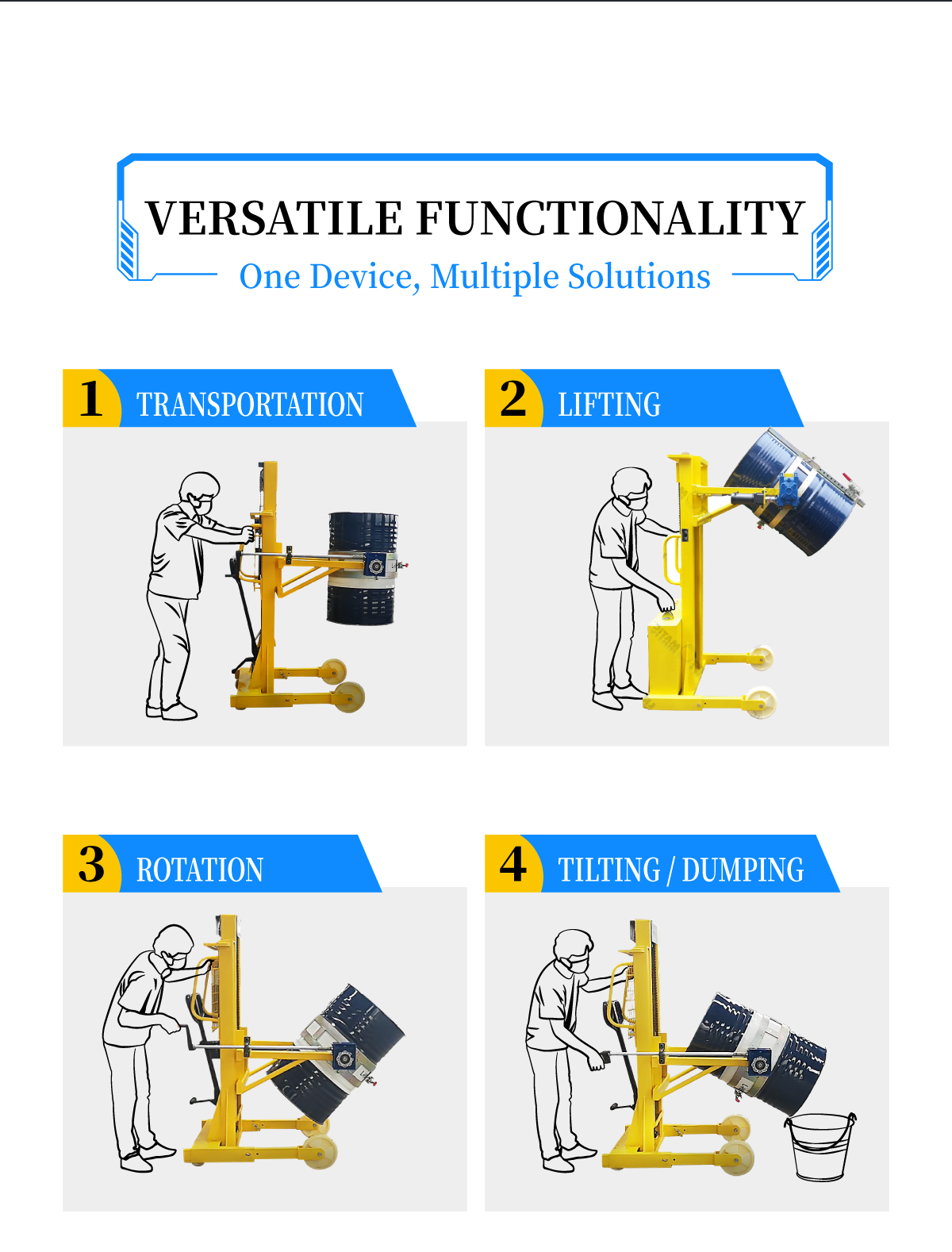

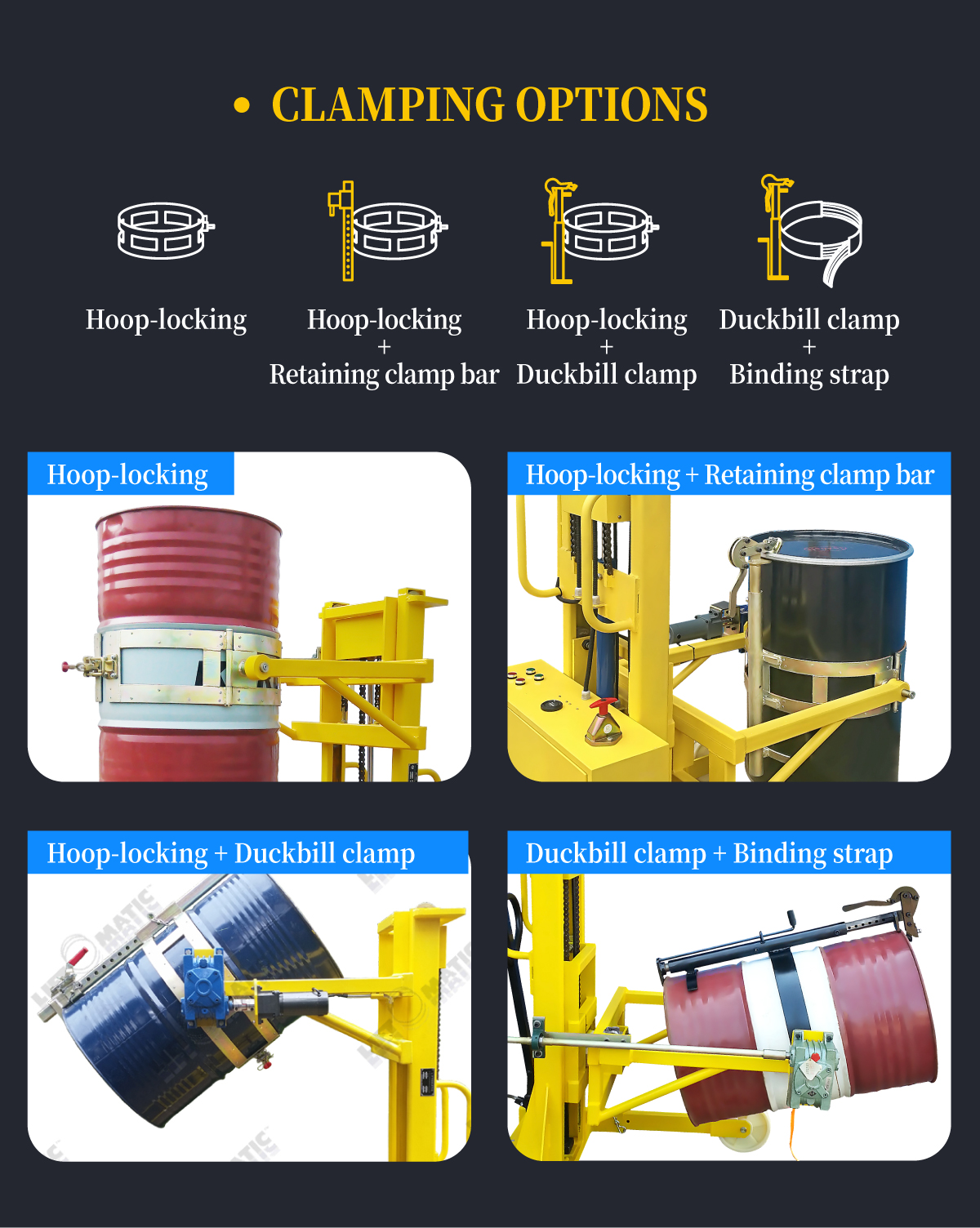

 The model TD-850 DrumVertor is modular design for lifting, dumping and transporting drums of liquid or dry materials. Standard 55 gallon steel drum is held in a round cradle and secured by toggle clamp. A hydraulic jack with foot pedals offers 130cm lift dumping height and a hand crank worm-gear reducer allows operator to mix drum contents and control pouring rotation at any angle along 360 degree path. An optional retaining clamp bar for fiber or plastic drums is available upon request.

Product Features



1、Ideal for lifting, handling, weighing, and dispensing drums.

2、Designed for standard 200-liter (55-gallon) steel drums.

3、Features an adjustable hoop fixation mechanism that allows 360° rotation, locking at any desired angle.

4、Equipped with a user-friendly hydraulic lifting system and ergonomic handle.

5、Heavy-duty hydraulic cylinder (similar to a hydraulic trolley) ensures extended service life and higher load capacity.

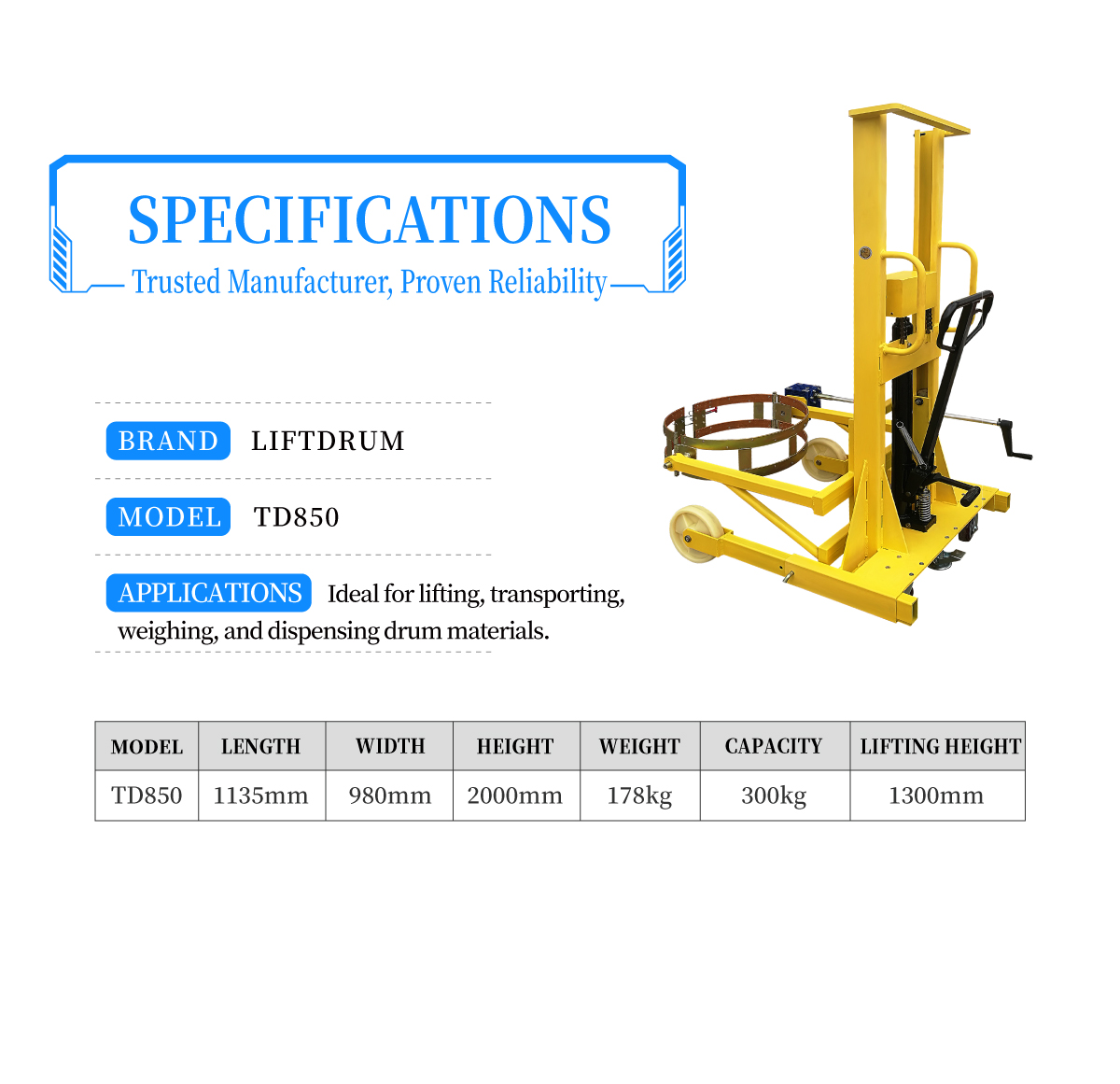

Specifications



ModelTD850
Weight200KG
Capacity300KG
Dimensions1110mm (L) x 960mm (W) x2020mm (H)
Lifting height1300mm
Warranty12 months against any defect in parts and workmanship
OptionsFiber drum adaptor available upon request. Small cradle for 30 gallon drums.
